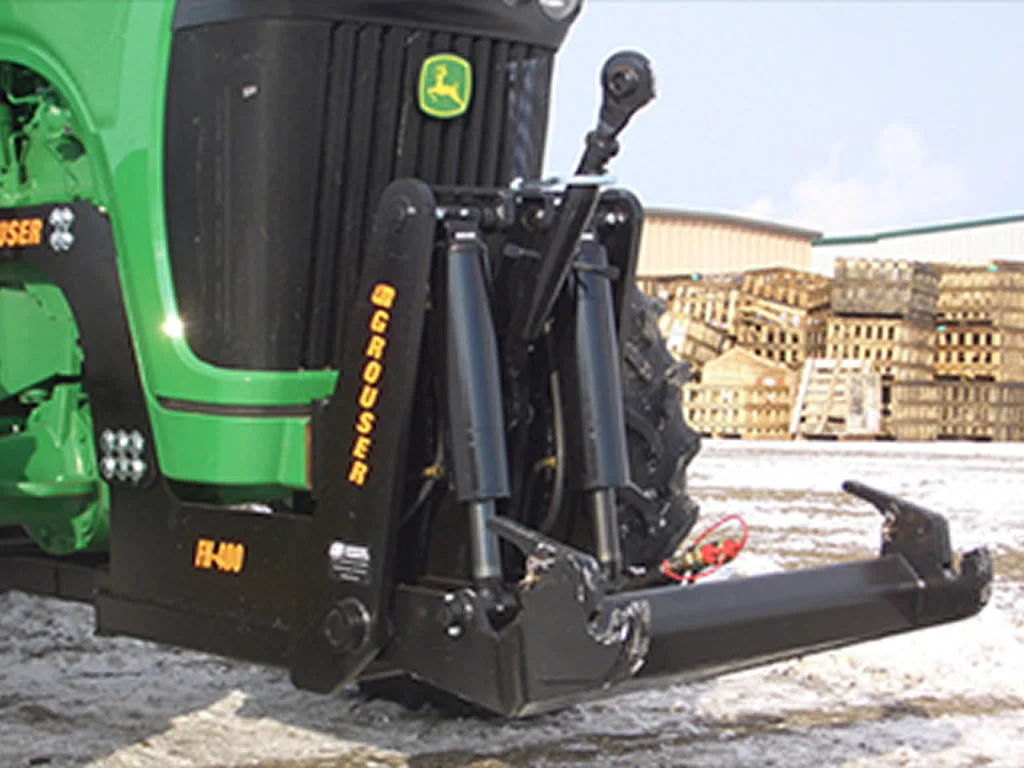

FH400 Front Hitch

The FH400 Front Hitch is intended to be used with 4WD MFD, 2WD, & tracked tractors. Its Cat III N Front 3-Point is developed to fit tractors from 100 HP–400 HP. This front hitch is a standalone product used to push dozer blades, bean cutters, row crop tillage, planters, carry fertilizer tanks, weights, and more.

Features

• All FH400 3-points are Cat III narrow
• Push force is transferred to the tractor frame and draw bar through an under-axle frame
• Lower arms are claw quick attach
• Hitch comes complete with all mounting hardware, hoses, and hydraulic cylinders
• Double acting lift cylinders
• Only Grouser 3-points have a lift range of -6″ to +36″

Specifications

• Lift capacity at the claws: 15,000 pounds
• Lift range: 42″
• Lift cylinder size: 4″ x 12″ with 2″ rod
• Front SCV outlets (1 or 2 sets)
