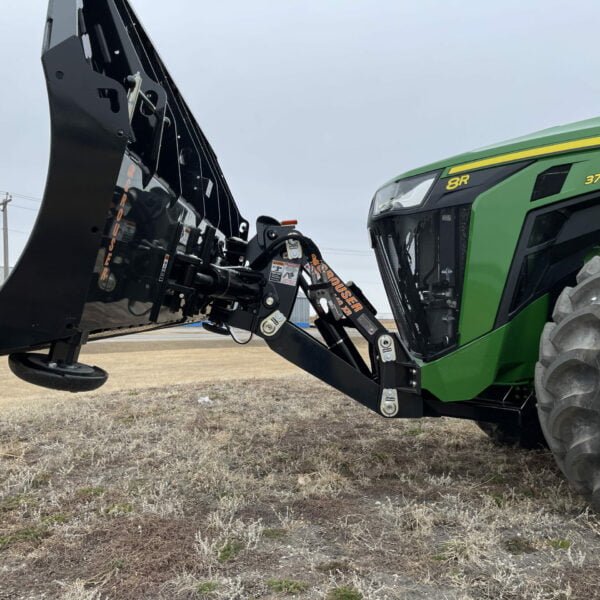

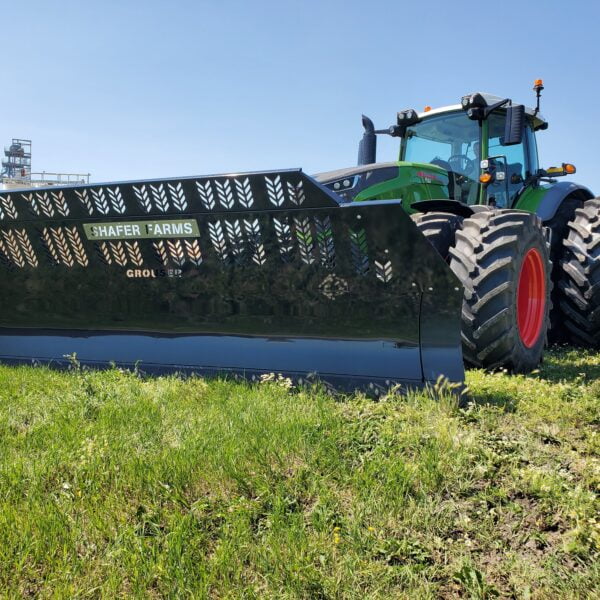

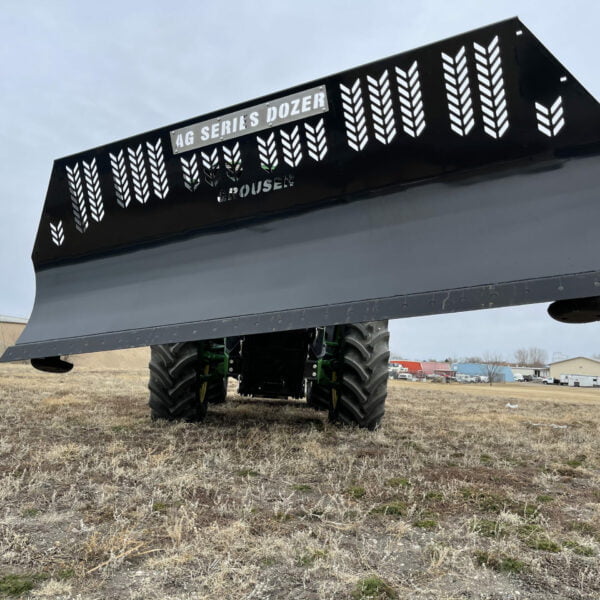

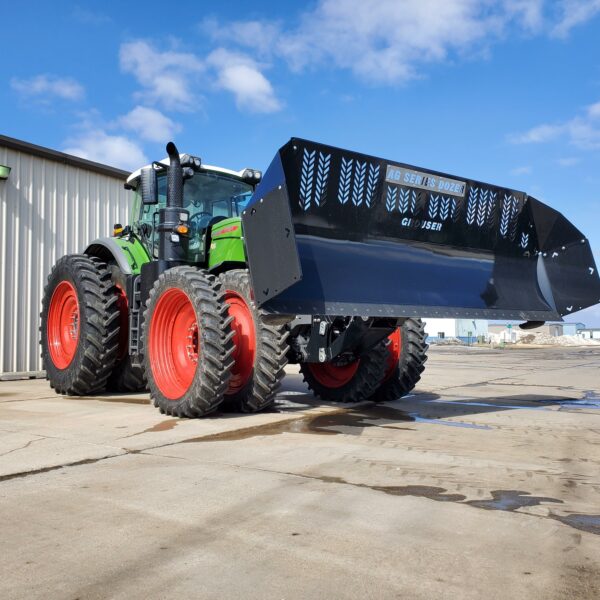

AG240 Dozer Blade
The latest AG240 Dozer Blade gives you increased lift height, ground clearance and in-ground depth. This is the ideal blade for 150–500 horsepower row crop tractors that have long travel front suspensions. The AG240 is available in 4 or 6-way configurations to give you exceptional versatility and ease of use in the yard and the field.
Features

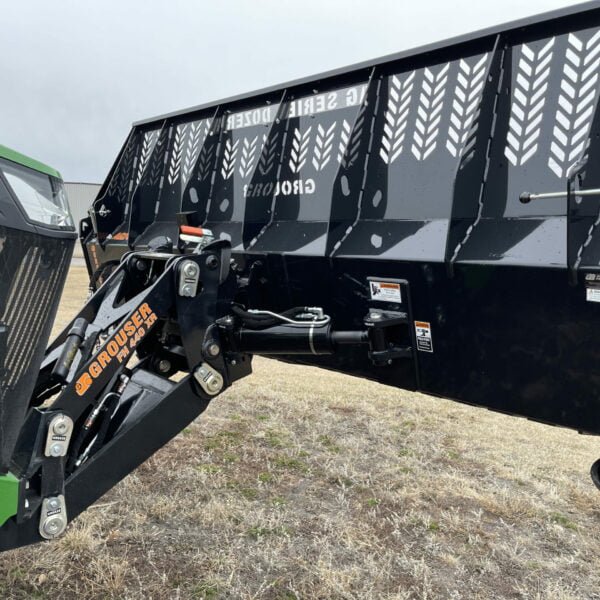

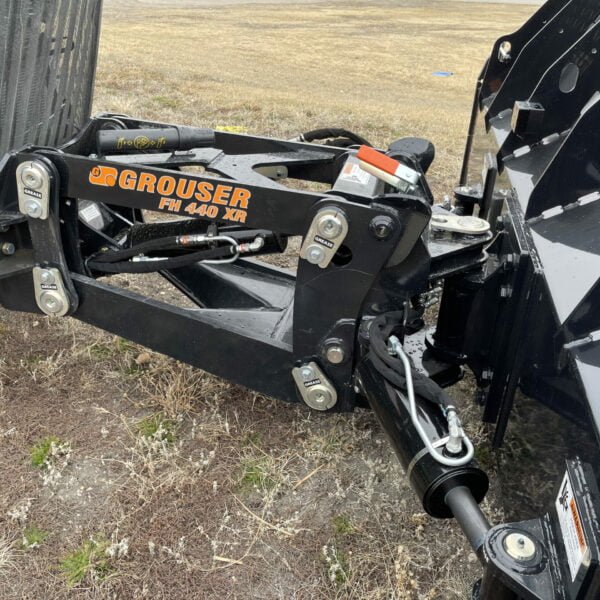

- Used with the Grouser FH440XR Front Hitch
- Single lever quick attach blade
- Available with hydraulic angle and hydraulic tilt
- Easy adjustable skid shoes with replaceable wear pads
- Easy access hydraulic couplers
- Custom name plate
- Extended Range Vertical Paralift lift system
Specifications
- 22°-29° approach angle
- 96.5″-118″ from cutting edge to front axle
- 42″-48″ lift height
- 16.5″-21.5″ in-ground depth
- 18″-20″ undercarriage clearance
- Lift cylinder: 5″ x 12″
- Reversible cutting edge: 5/8″ x 6″
- Widths: 10′, 12′, 14′, 16′
- Blade height: 60″
- Moldboard: 3/16″ thick
- Angle cylinders: (2) 5″ x 12″
- Tilt cylinder: 4″ x 8″
- Blade angles: 30° right or left
- Blade tilts: 10°

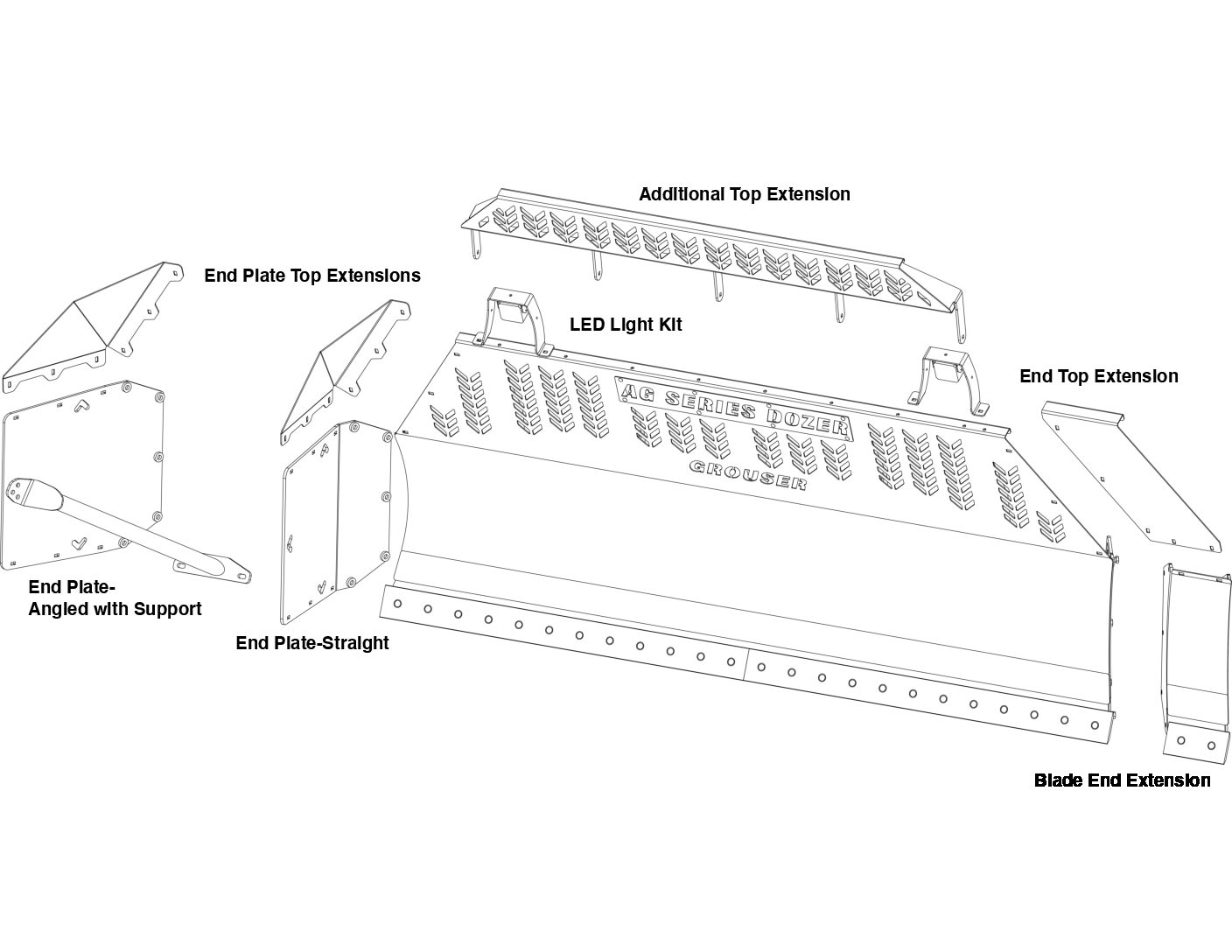

Attachments/Options
- 1-Foot End Extensions
- Top Extension for End Extensions
- Box End Plates – Straight
- Box End Plates – Angled
- Top Extension for End Plates
- LED Light Kit
- Additional 12″ Top Extension
- Weight Carrier Bracket
- Single Lever Hydraulic Multi-Coupler
- 4-Point to CAT3N Adapter
