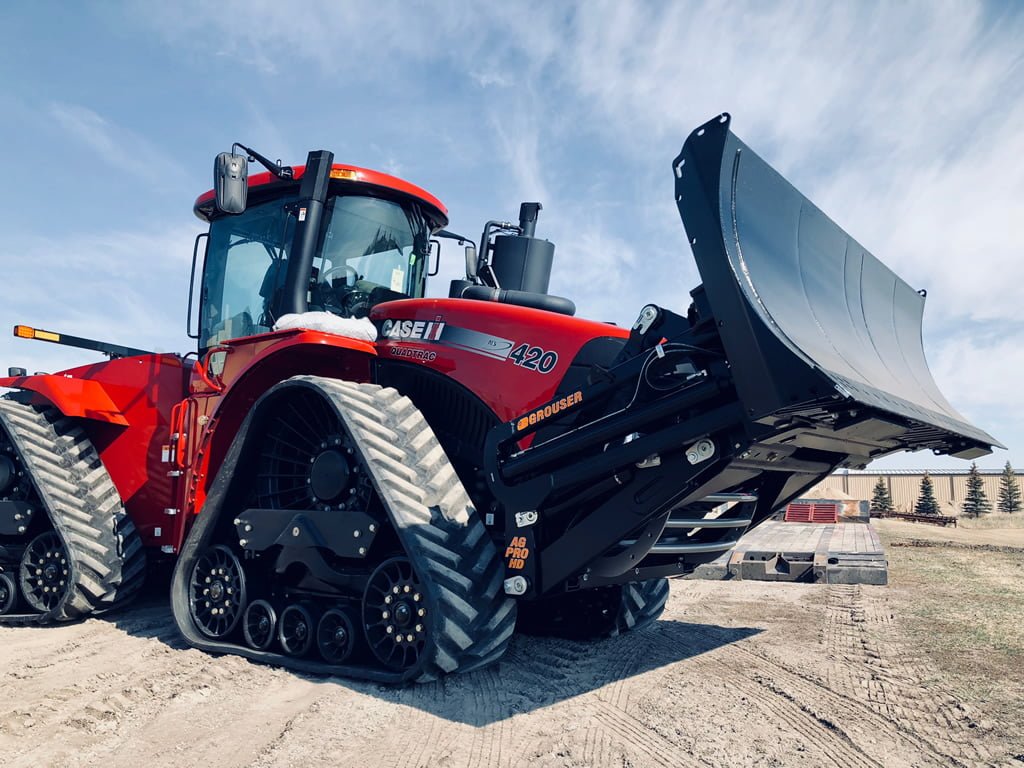

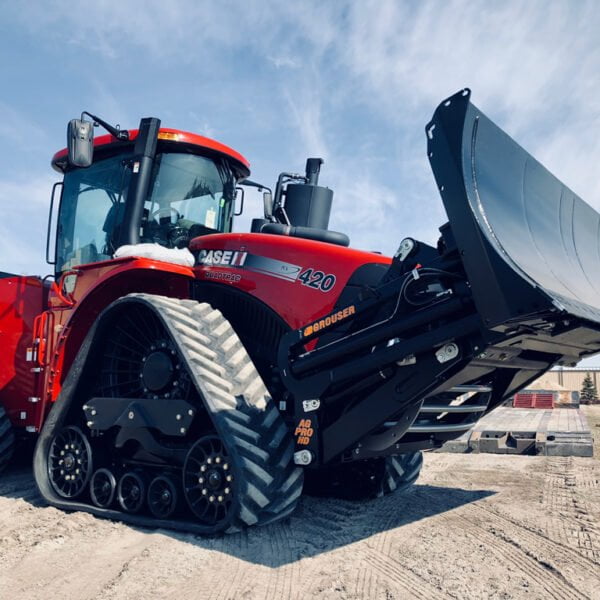

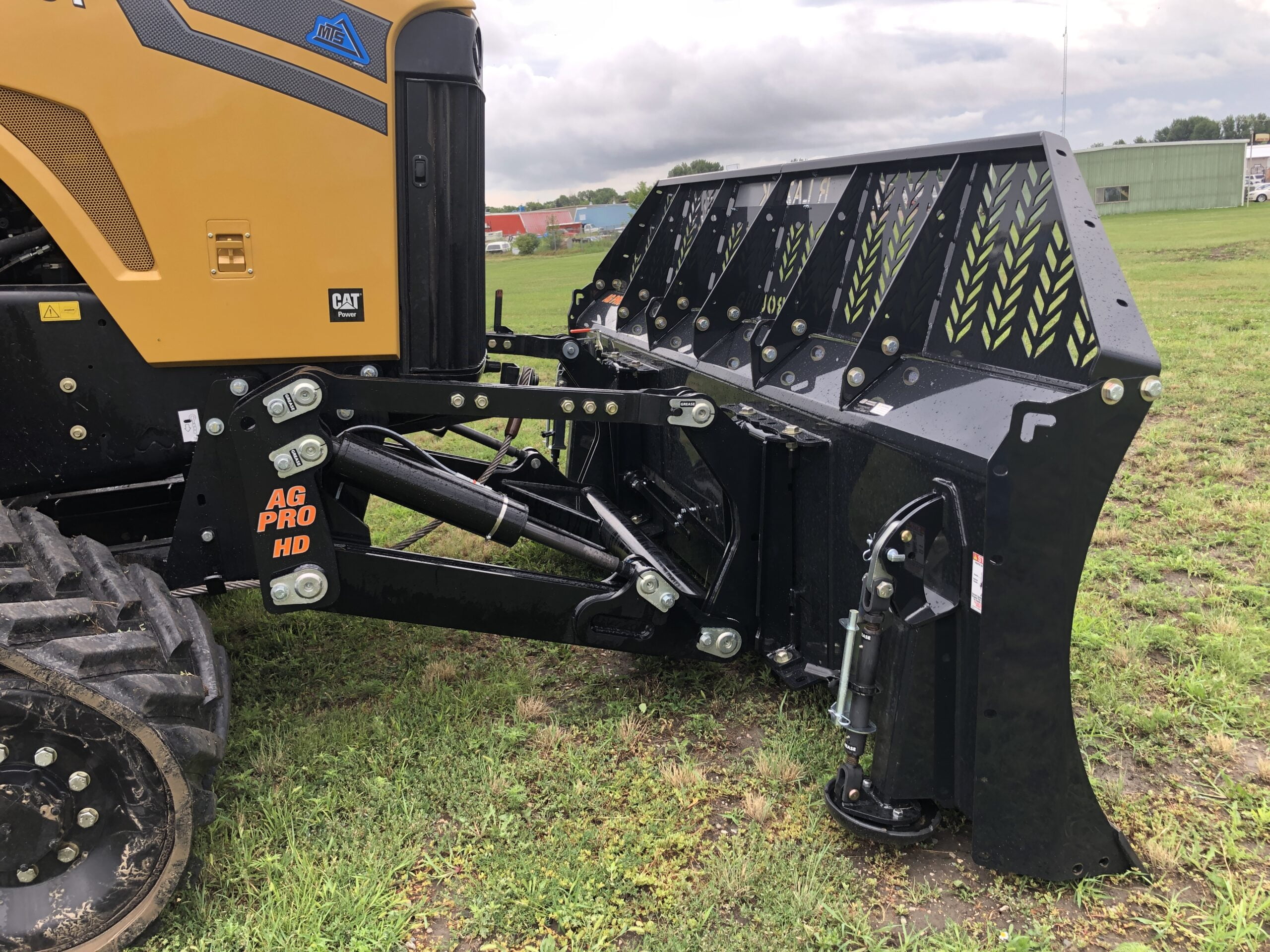

Heavy-Duty Dozer Blade

Our Heavy-Duty (HD) Dozer Blades are designed for the toughest conditions and materials, and our custom designs ensure a precise match to your specific needs.

These blades incorporate a heavier gauge of material, larger hydraulics, and greater capacity for taking on high-intensity, long-hour construction and earthmoving jobs.

Features

• Structural upgrades for high hour/severe applications
• 5″ Lift Cylinders
• Larger abrasion resistant hydraulic hoses
• Vertical paralift design   Grouser-Paralift-Advantage
• Under tractor clearance: 20″–25″
• Single lever quick attach blade system
• Reinforced tilt cylinder mounting
• Hardened pins in all locations
• 3/8″ grade 80 push plate added to moldboard
• Reversible cutting edge: 3/4″ x 8″
• End Bits

Specifications

• Reversible cutting edge: 3/4″ x 8″
• Blade width: 12’–20′
• Blade height: 48″
• Lift height: 54”-56″
• Power pitch
• Lift cylinders: (2) 5″ x 18″
• Angle cylinder: (2) 4″ x 43.5″
• Tilt cylinder: (2) 4″ x 12″
• Blade angles: 30° right or left
• Blade tilts: 10°

Attachments/Options

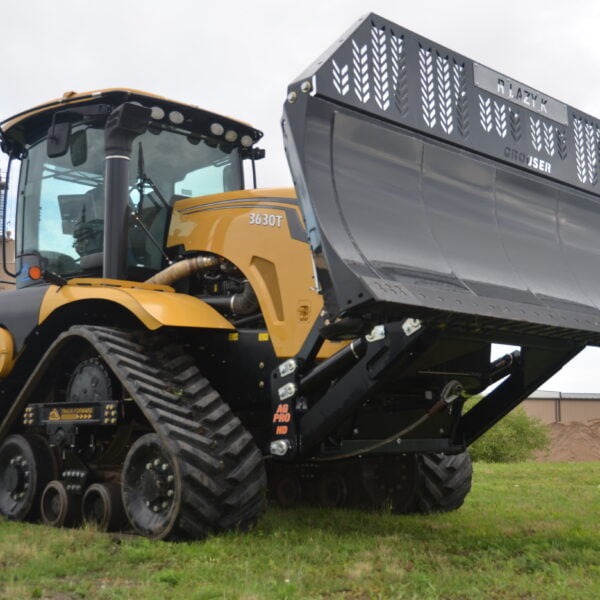

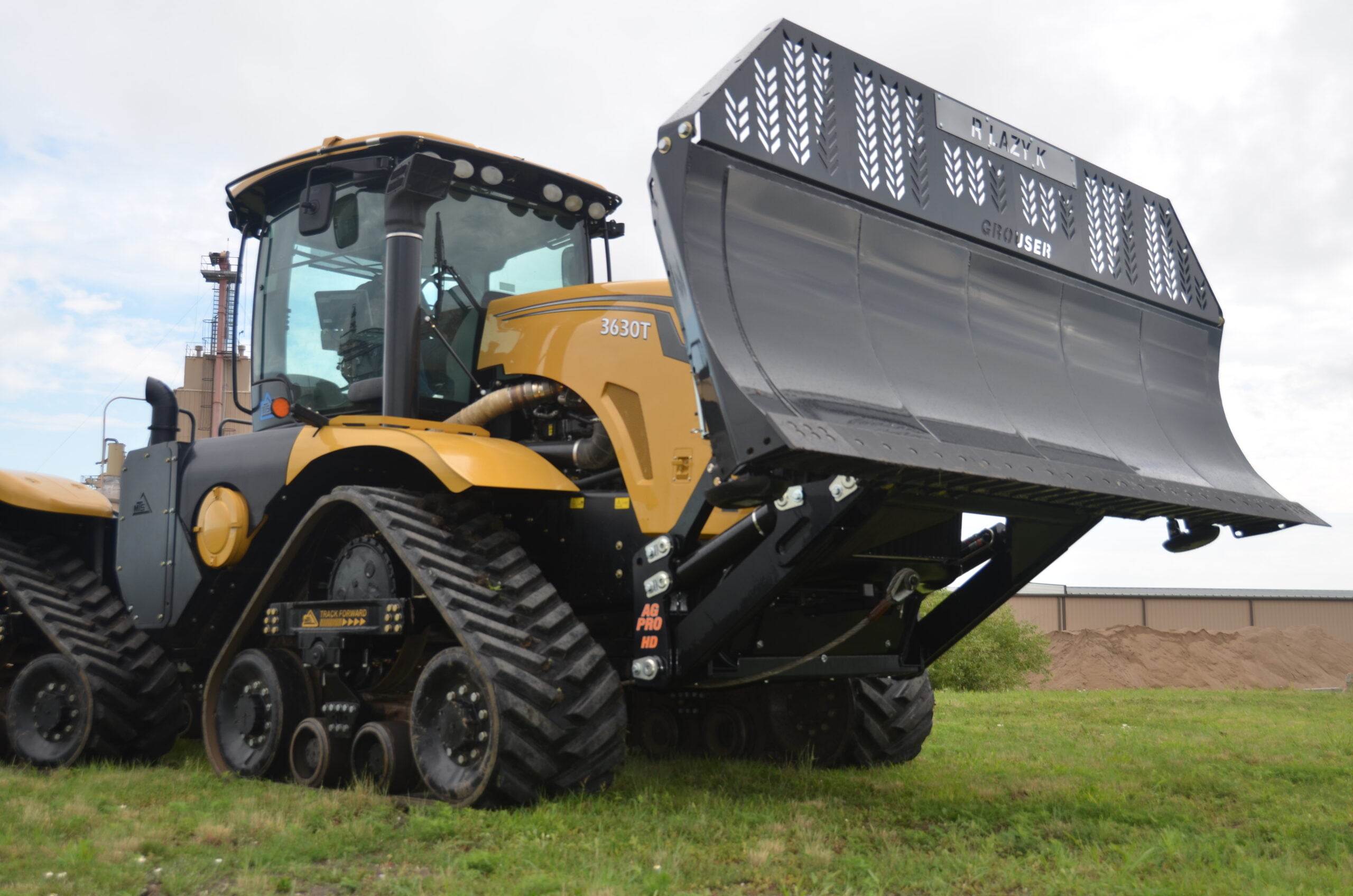

• Top extension
• Power pitch
• Serrated cutting edge
• U-blade extensions
• Extended wear skid shoe
• Joystick kit
• Custom variations available
