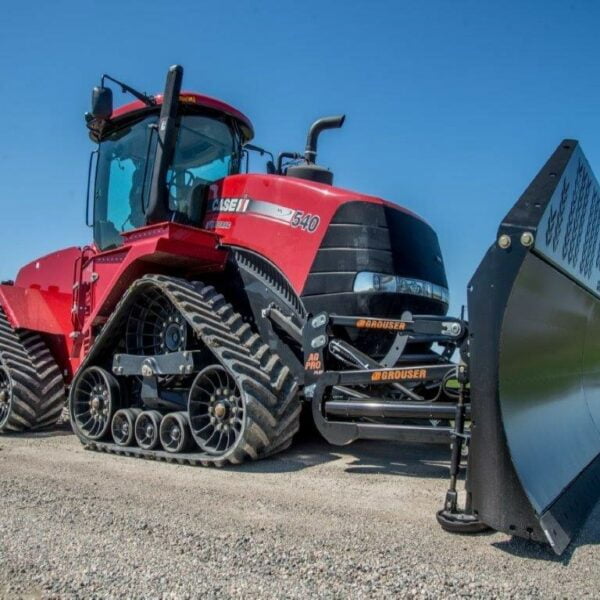

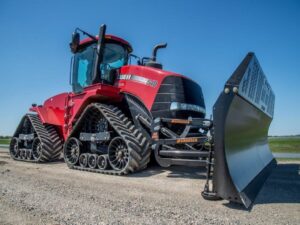

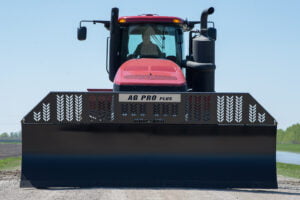

AG PRO Classic Dozer Blade

Tradition continues with the AG PRO Classic dozer, which is designed to meet the mounting requirements of the OEM manufacturers.

The AG PRO Classic features a removable top extension and a double pivot angle system. The undercarriage and lift system are out of the way, which helps you meet your customers’ requirements to spread and pack silage efficiently.

Features

• Single lever quick attack blade
• High lift height
• Deep in-ground depth
• Unmatched ground clearance
• Steep approach angle
• Easy, adjustable skid shoes with replaceable wear pads
• Reversable cutting edge: 3/4” x 8”
• Grille guard as standard equipment for John Deere Tier 3 & 4, Case IH, and New Holland Tier 4 models
• Industry leading blade capacity
• Custom nameplate

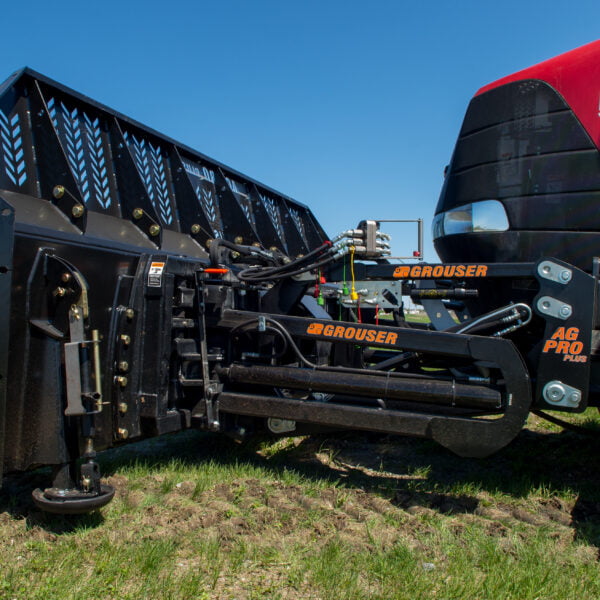

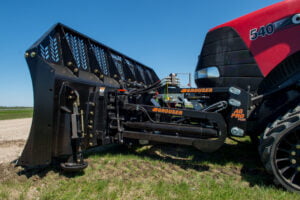

• Vertical paralift design   Grouser-Paralift-Advantage

Specifications

• Control options: 2-4-6 way
• Horsepower: 350–700
• Blade widths: 12′, 14′, 16′, 18′, 20′
• Blade capacity: 1.2 cu. yards per ft.
• Weight: 6,597–12,747 lbs.
• Blade height without top extension: 48″
• Blade height with top extension: 72″
• Lift height: 54″–56″
• Grade capability: 40%–58%
• Tilt: 10°
• Angle: 30° double pivot
• In-ground: 20″–22″
• Axle to cutting edge: 134″–146″
• Ground clearance: 20″–25″
• Quick attach: yes
• Lift cylinder: (2) 4.5″ x 18″
• Angle cylinder: (2) 4″ x 43.5″
• Tilt cylinder: (2) 4″ x 8″
• Cutting edge: 3/4″ x 8″ reversible
• Moldboard: smooth roll formed
• Quick attach: Grouser skid steer style quick attach at blade
• Transport width: blade width

Options / Attachments

• End extensions
• Box end plates – angled
• Top extension for end extension
• Box end plates – straight
• LED light kit
• Additional top extension
• Weight carrier bracket
• Power Pitch
