AG PRO Silage Special Dozer Blade

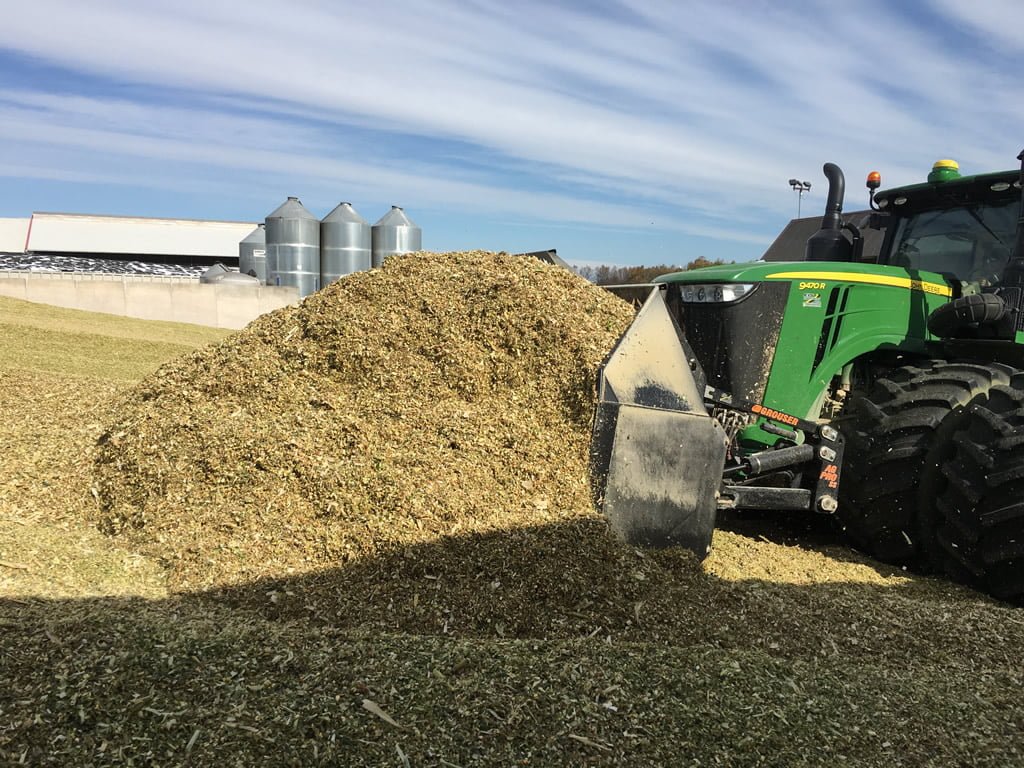

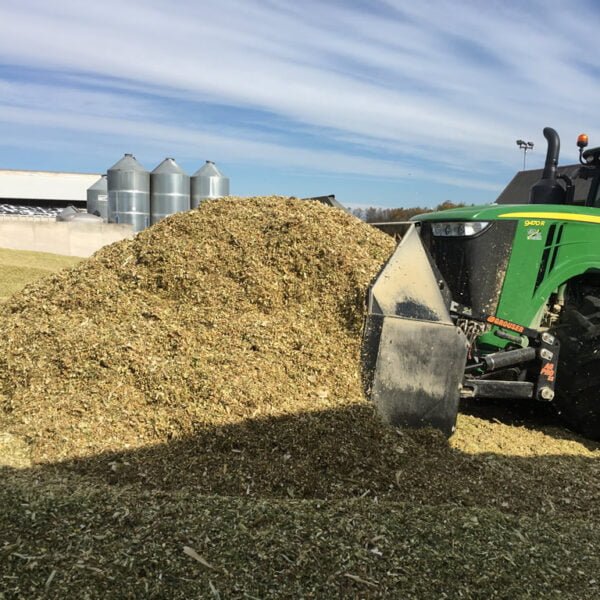

Grouser has developed a new class of AG PRO dozers for your 350–700 HP tractor. This AG PRO Silage Special blade has an unobstructed slanted top surface and a grille guard to prevent silage from building up and being pushed into the tractor grille.

This blade, paired with the AG PROss undercarriage and lift system, will raise the blade up and out of the way, which helps you meet your customers’ requirements to spread and pack silage efficiently.

Features

• High lift height
• Deep in-ground depth
• Unmatched ground clearance
• Steep approach angle
• Single control angle pivot system
• Single lever quick attach blade
• Easy adjustable skid shoes with replaceable wear pads
• Reversible cutting edge: 3/4” x 8”
• Grille guard as standard equipment on John Deere, Case IH & New Holland Tier 4 models
• Industry-leading blade capacity
• Vertical Paralift design
• Custom nameplate

Specifications

• 2-4-6 way control options
• Horsepower: 350–700
• Vertical paralift. Grouser-Paralift-Advantage
• Blade widths: 12’–18′
• Height: 72″
• Lift height: 56″–58″
• In-ground: 22″–25″
• Ground clearance: 20″–25″
• Angle: 30° single pivot
• Tilt: 10°
• Quick attach: hook style
• Lift cylinder: (2) 4.5″ x 18″
• Cutting edge: 3/4″ x 8″ reversable
• Transport width: blade width
• Blade capacity: 1.3 cu. yards per foot

Attachments/Options

• End extensions
• Box end plates – angled
• Top extension for end extension
• Box end plates – straight
• LED light kit
• Additional top extension
• Weight carrier bracket
• Power Pitch
