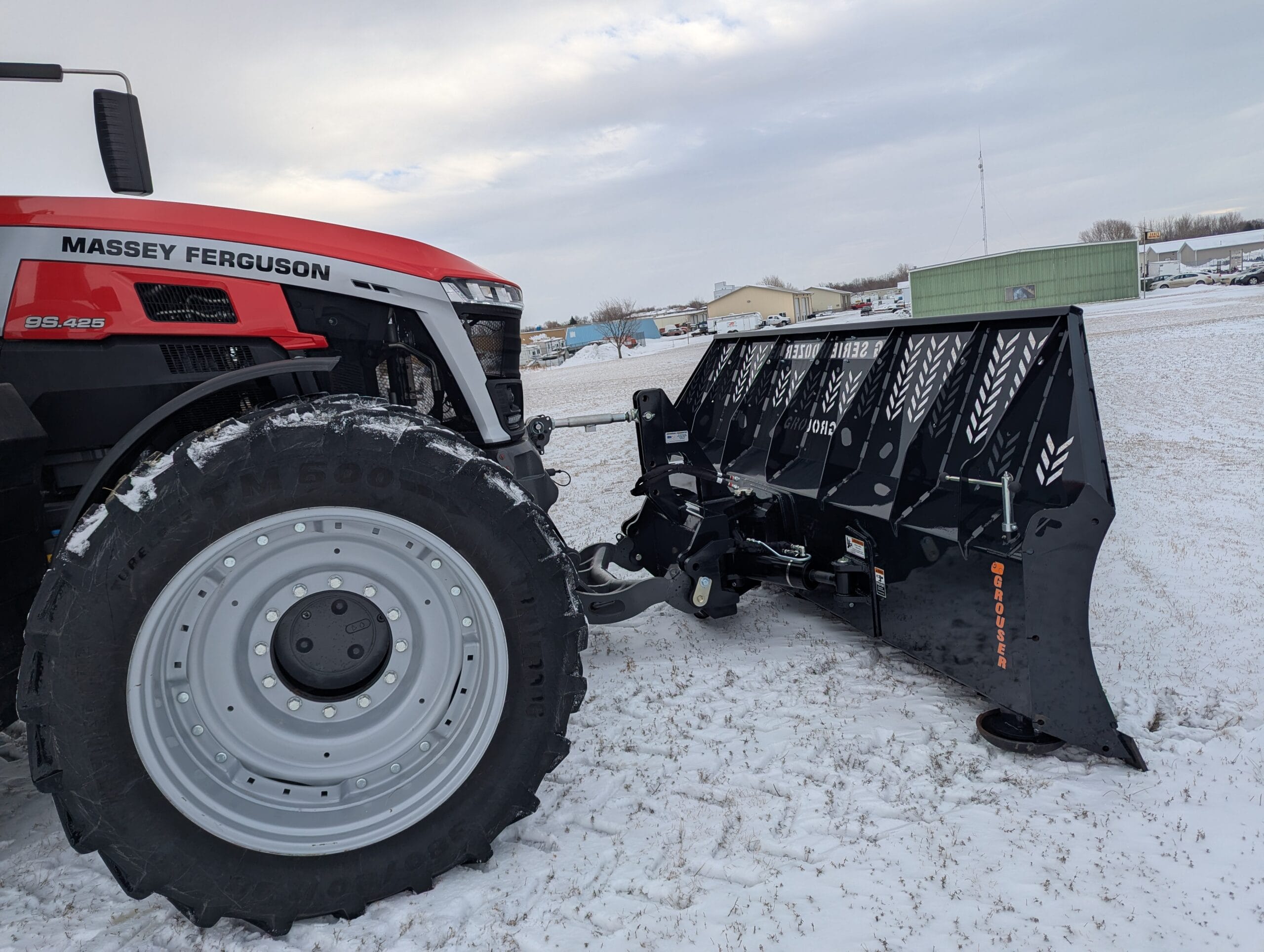

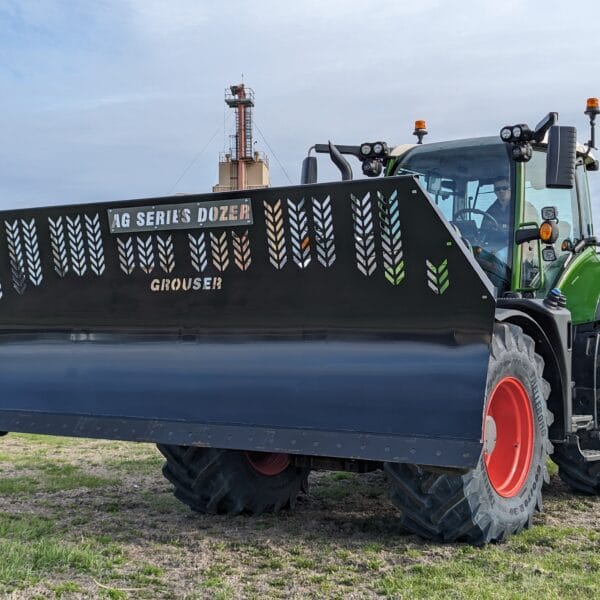

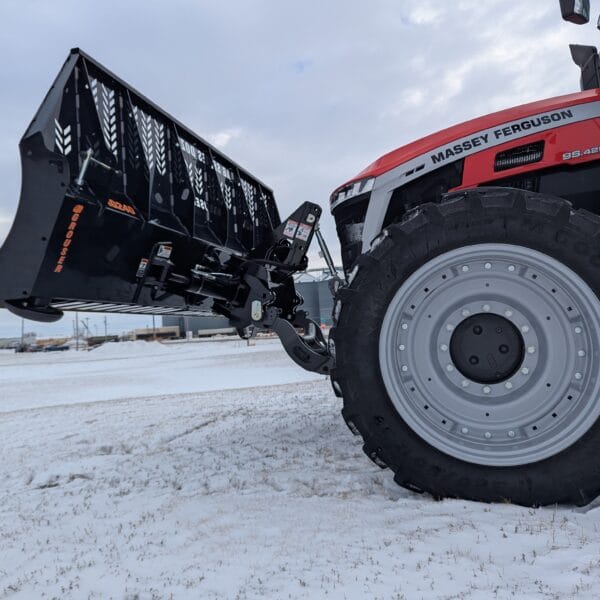

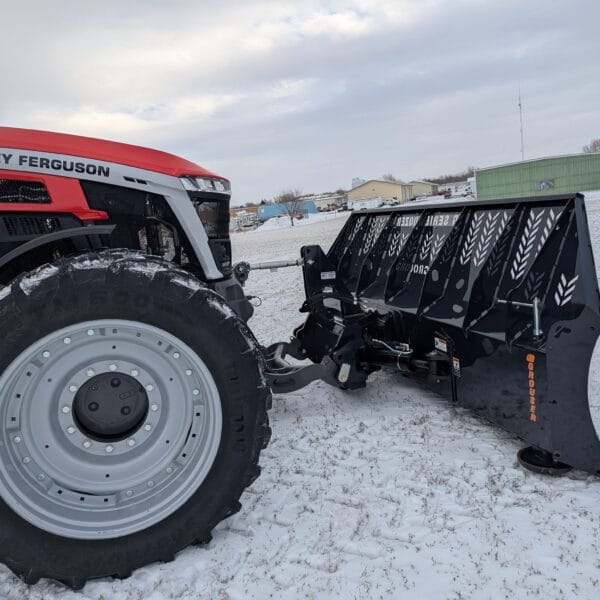

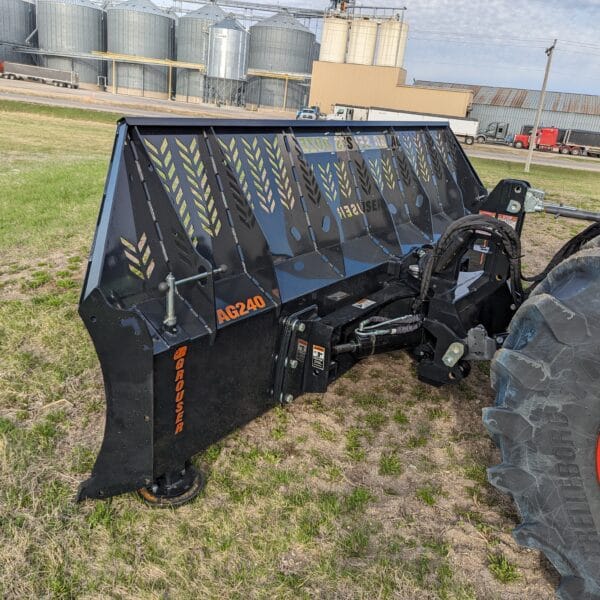

AG240i Dozer Blade

The AG240i blade includes the features of the AG240 blade system and is designed to attach onto OEM and Grouser FH400 Front Hitches. These systems are ideal for 150–500 horsepower row crop tractors. Pair this blade with a Front 3-Point Hitch Support to add strength and durability to your tractor.

Features

• Quick connect & disconnect at the front hitch
• Easy adjustable skid shoes
• Available for mounting on OEM or aftermarket front hitches
• Custom nameplate

Specifications

• 2-4-6 way control options
• Reversible cutting edge: 5/8″ x 6″
• Widths: 10′, 12′, 14′, 16′
• 30″–32″ lift height
• Blade height: 60″
• Moldboard: 3/16″ thick
• Angle cylinders: (2) 5″ x 12″
• Tilt cylinder: 4″ x 8″
• Blade angles: 30° right or left
• Blade tilts: 10°

Attachments/Options

• 1-Foot End Extensions
• Top Extension for End Extensions
• Box End Plates – Straight
• Box end plates – Angled
• Top Extension for End Plates
• LED light kit
• Additional 12″ Top Extension
• Weight Carrier Bracket
• Single Lever Hydraulic Multi-Coupler
• 4-Point to CAT3N Adapter
